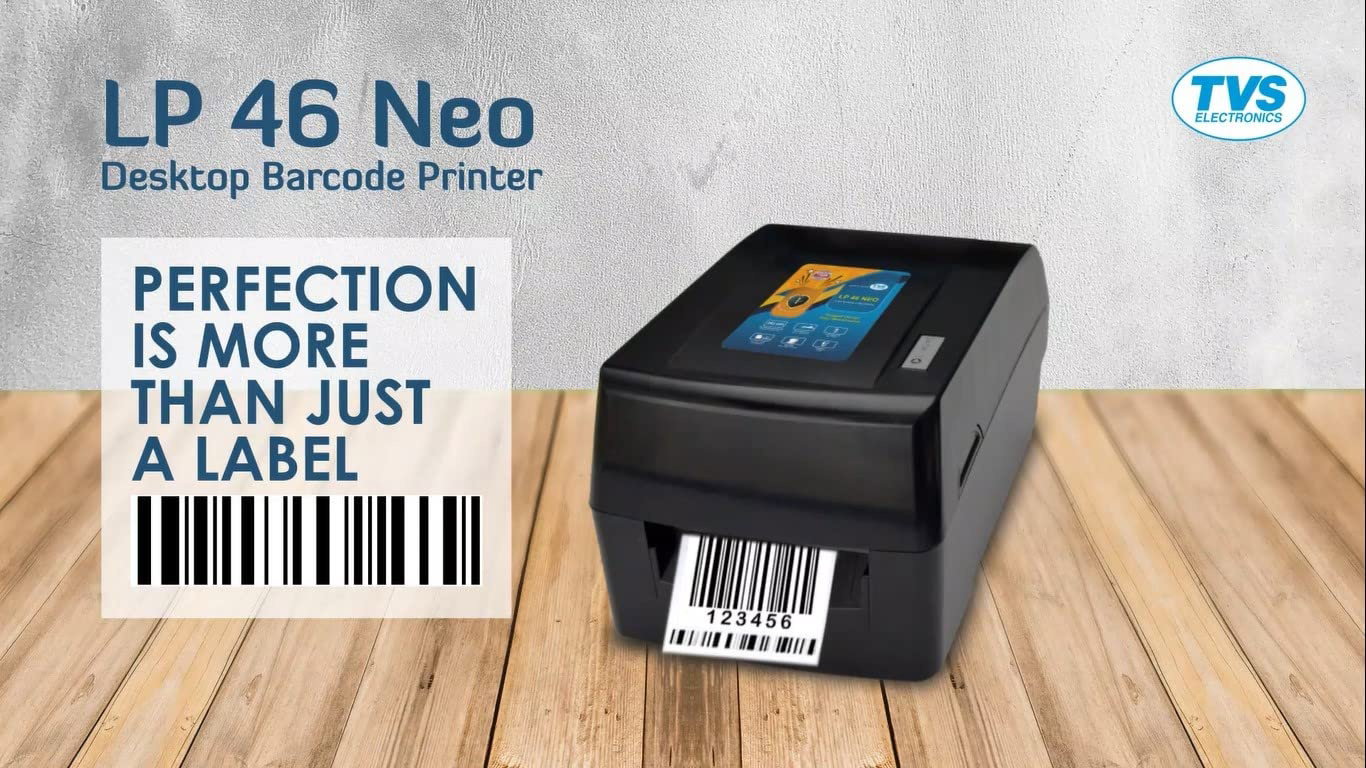

TVS LP-46 Neo Barcode Label Printer
LP 46 Neo Barcode Label Printer – 203 DPI Thermal Transfer & Direct Thermal Printer
The LP 46 Neo Barcode Printer is a compact yet powerful labeling solution designed for retail stores, logistics companies, warehouses, factories, and hospitality businesses. Built with advanced thermal printing technology and a durable print head, this high-performance printer delivers clear, fast, and reliable barcode printing for a wide range of applications.
With support for both Direct Thermal and Thermal Transfer printing methods, the LP 46 Neo provides flexibility for printing long-lasting labels, tags, and barcodes while maintaining low maintenance and easy operation.
⭐ Key Advantages
✔️ Compact design suitable for limited workspace environments
✔️ Prints wider labels and tags with maximum 108 mm print width
✔️ Durable thermal print head with enhanced wear resistance
✔️ Easy installation, operation, and maintenance
✔️ Ideal for Retail, Logistics, Hospitality, Manufacturing & Warehousing

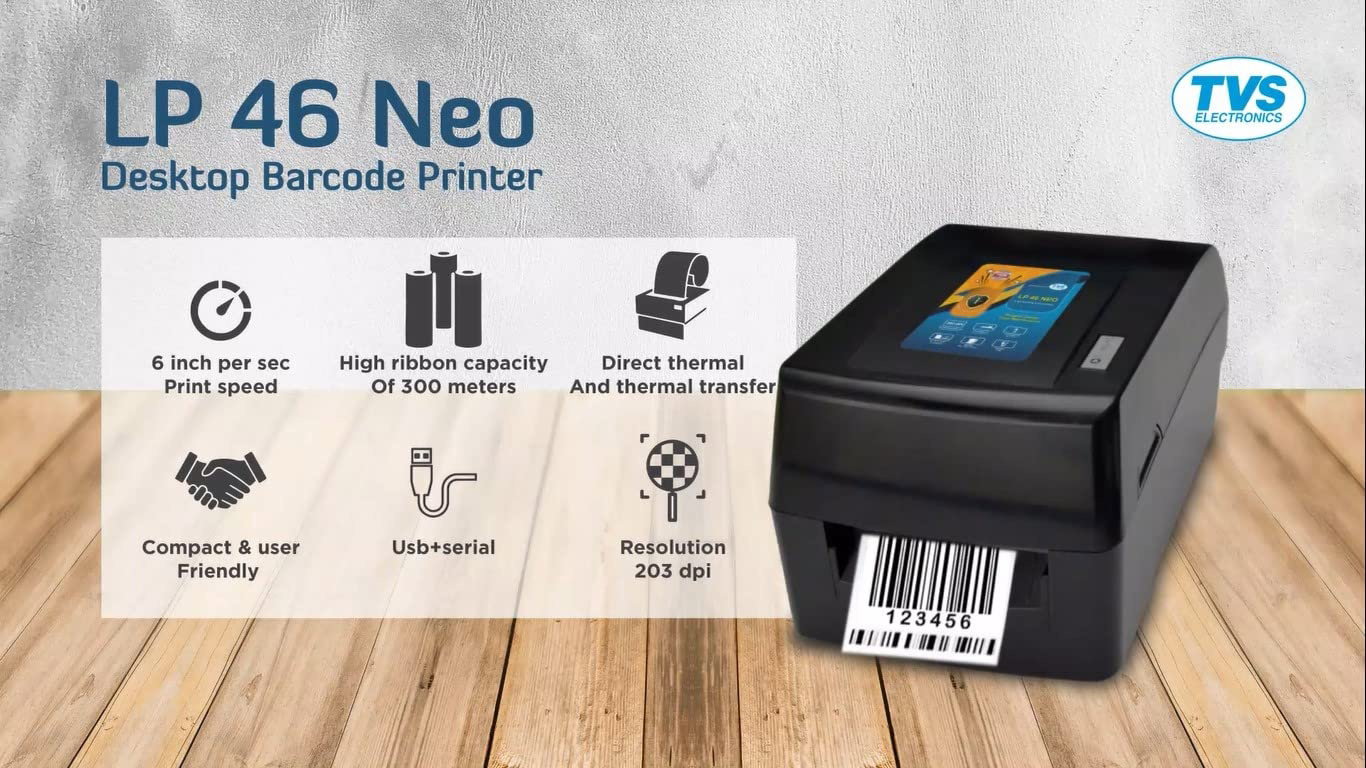

🖨️ Printing Performance
Printing Method: Direct Thermal & Thermal Transfer
Resolution: 203 DPI
Print Speed: Up to 150 mm/sec
Maximum Print Width: 108 mm
Processor: 32-bit RISC CPU for fast processing
🔌 Connectivity & Sensors
Interface: USB & Serial Connectivity
Paper Sensors:
Removable Transmission Sensor
Removable Reflection Sensor
These advanced sensors ensure precise label positioning and smooth printing performance.
📊 Barcode Compatibility
✔️ 1D Barcodes Supported
Code 39, UPC-A, UPC-E, Interleaved 2 of 5, Code 128, EAN-13, EAN-8, Codabar, Code 25, UPC2, UPC5, Code 93, UCC/EAN, Matrix 25, Postnet, HBIC39 and more.
✔️ 2D Barcodes Supported
PDF417 • MaxiCode • QR Code
📄 Media & Ribbon Specifications
Paper Types: Marked paper, Black-marked paper, Folding paper, Notched paper
Paper Width: 19 – 120 mm
Paper Thickness: 0.06 – 0.20 mm
Paper Roll Outer Diameter: Max. 27 mm
Paper Roll Inner Diameter: 25 / 38 mm
Ribbon Support
Ribbon Width: Up to 100 mm
Ribbon Length: Up to 300 mm
Ribbon Core ID: 25.4 mm
⚙️ Controls & Power
Controls: 1 Button Operation
Indicators: 2 LED Status Lights
Input Power: 110 – 240V AC, 50/60 Hz

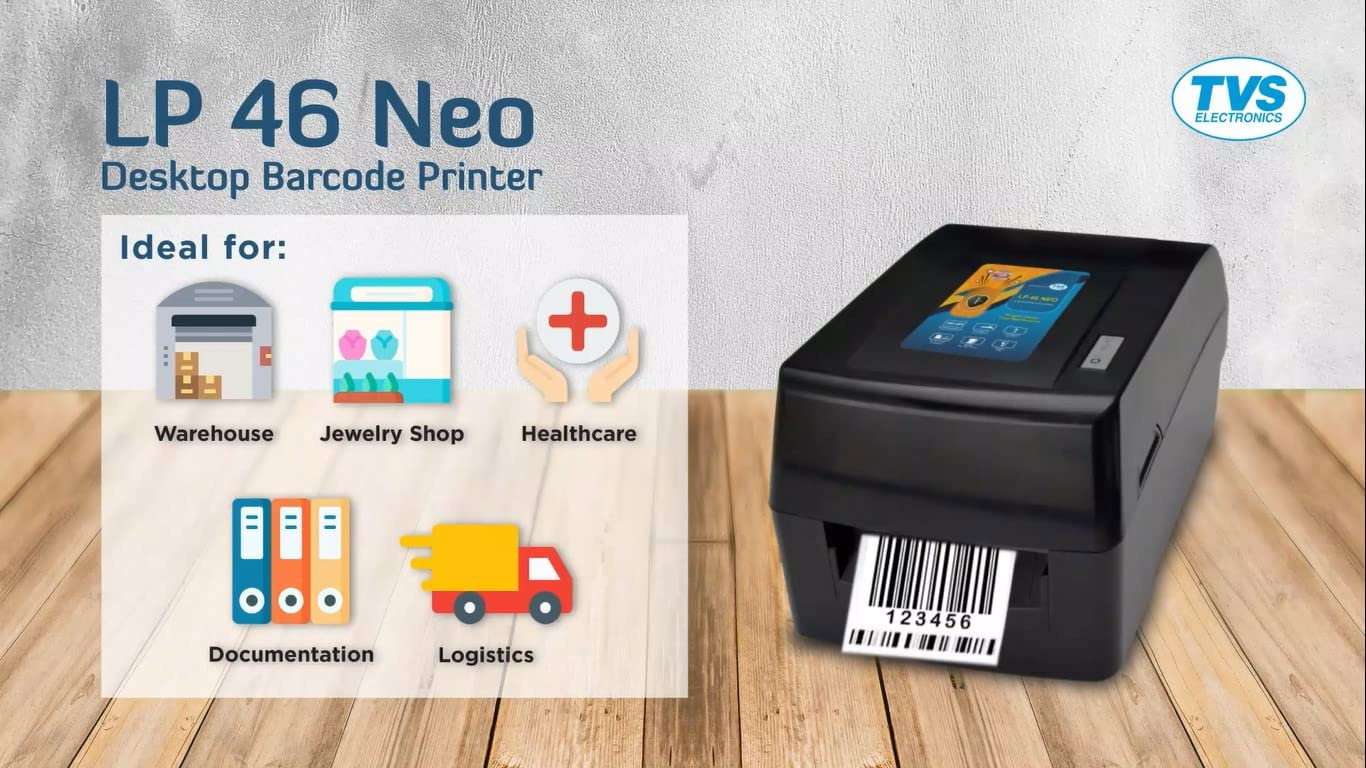

✅ Ideal For
Retail Billing • Shipping Labels • Logistics & Warehousing • Manufacturing • Inventory Management • Hospitality Tagging
